General Grant National Memorial

New York, NY

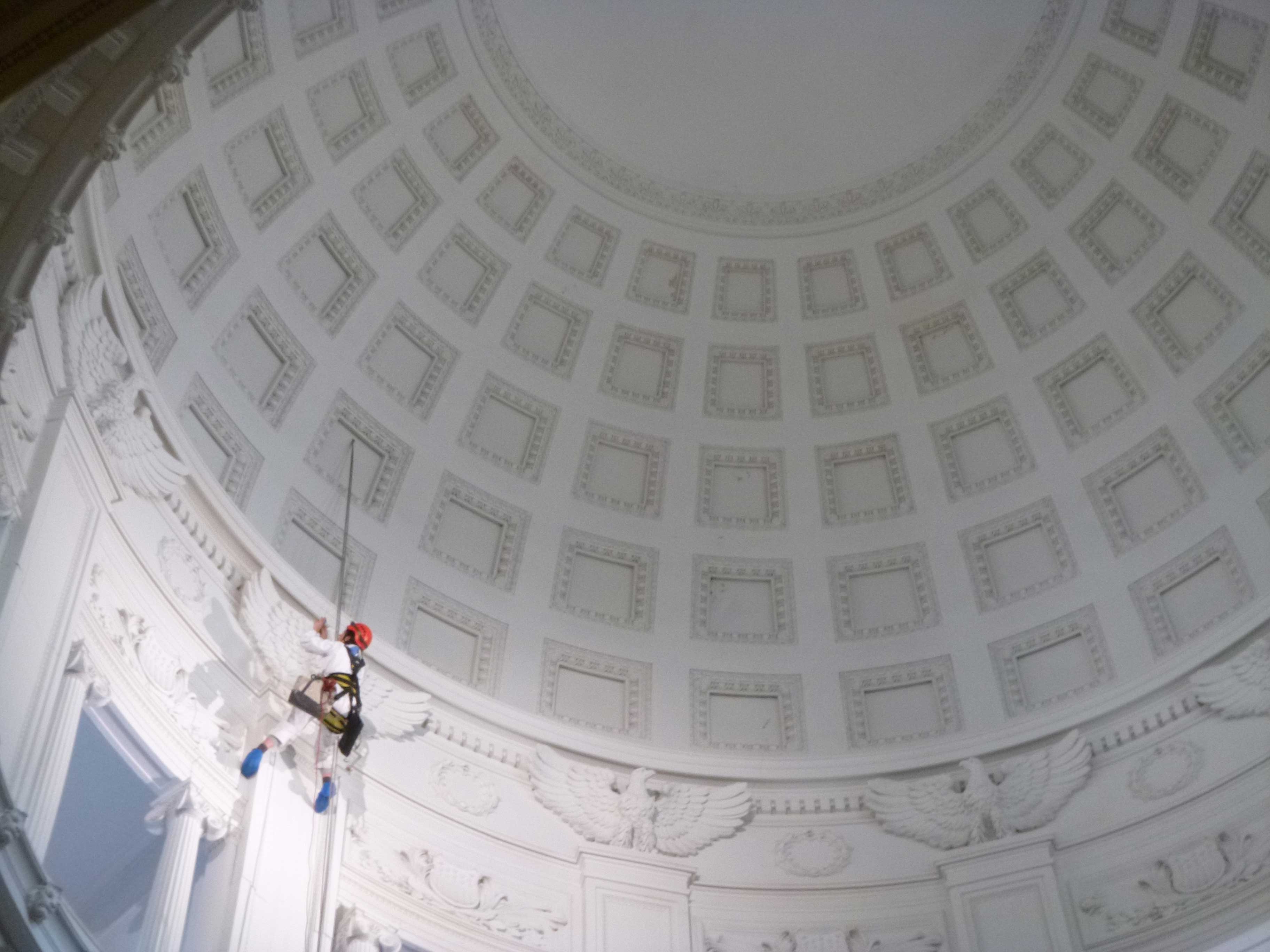

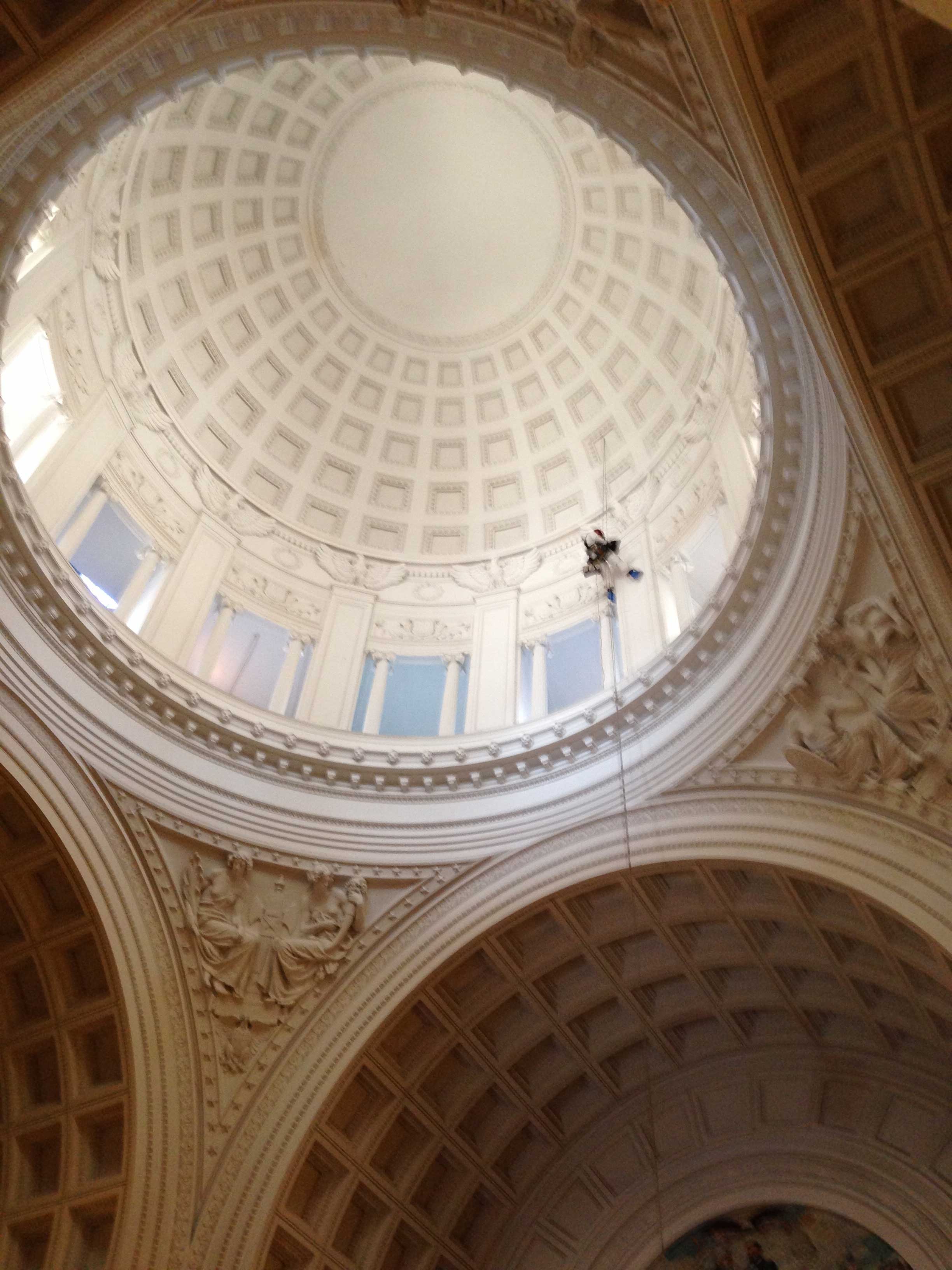

As part of a site inspection of the General Grant National Memorial performed in 2012, National Park Service staff identified areas of cracking at the interior plaster at the drum level of the rotunda. Areas of plaster at the pilasters appeared detached. The National Park Service requested Vertical Access perform a hands-on investigation of the plaster pilasters to better understand the causes of the cracks and determine whether the current condition presented an immediate public safety hazard.

Download Project Profile

Building description

The General Grant National Memorial, also known as Grant’s Tomb, is a mausoleum containing the remains of President Ulysses S. Grant and his wife, Julia Dent Grant. After Grant’s death in 1885, an architectural competition for the design of his memorial was won by New York architect John H. Duncan. Construction of Grant’s Tomb started in 1891 and was completed on April 17, 1897 when Grant’s remains were placed in a red granite sarcophagus in the monument.

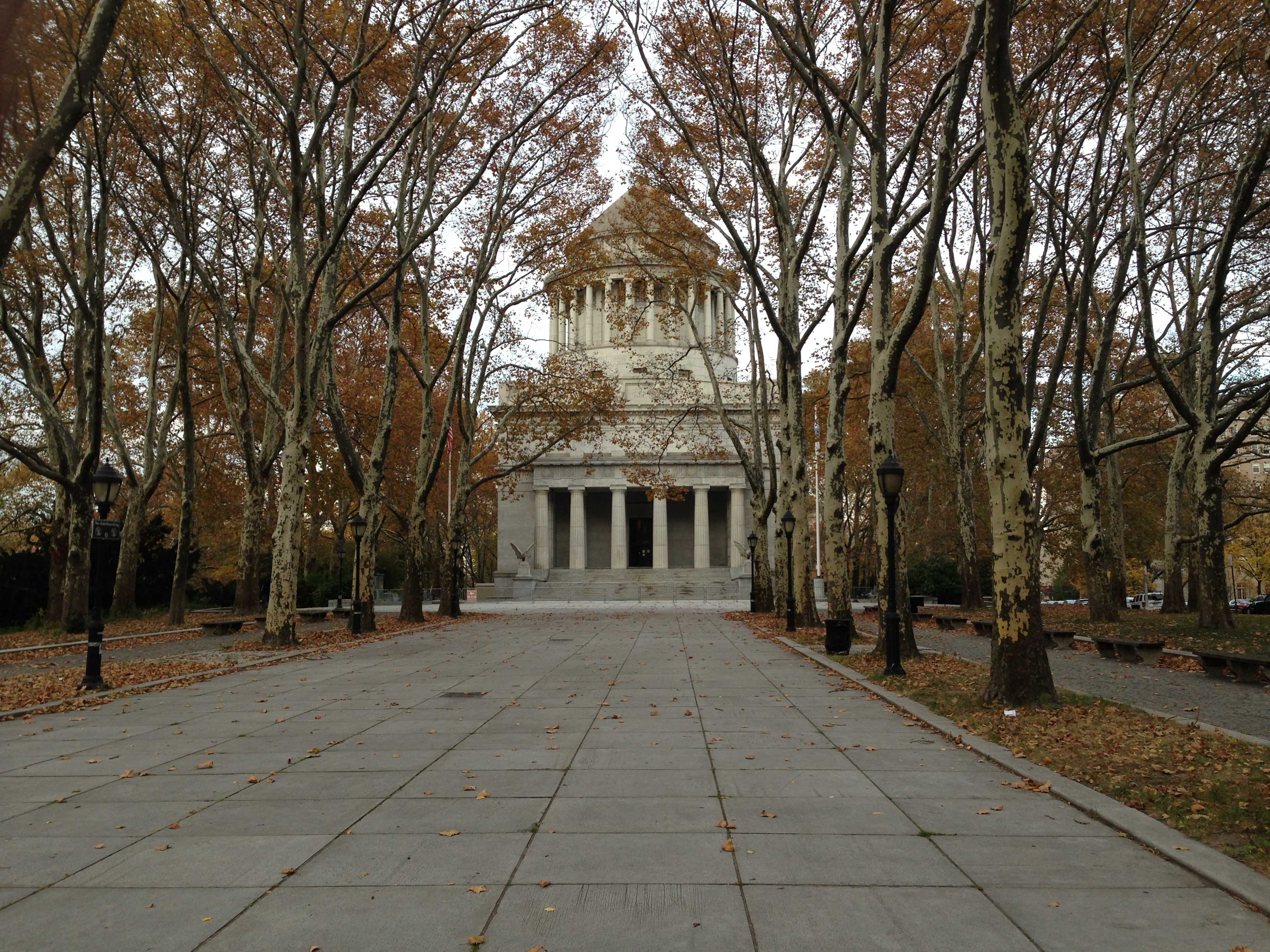

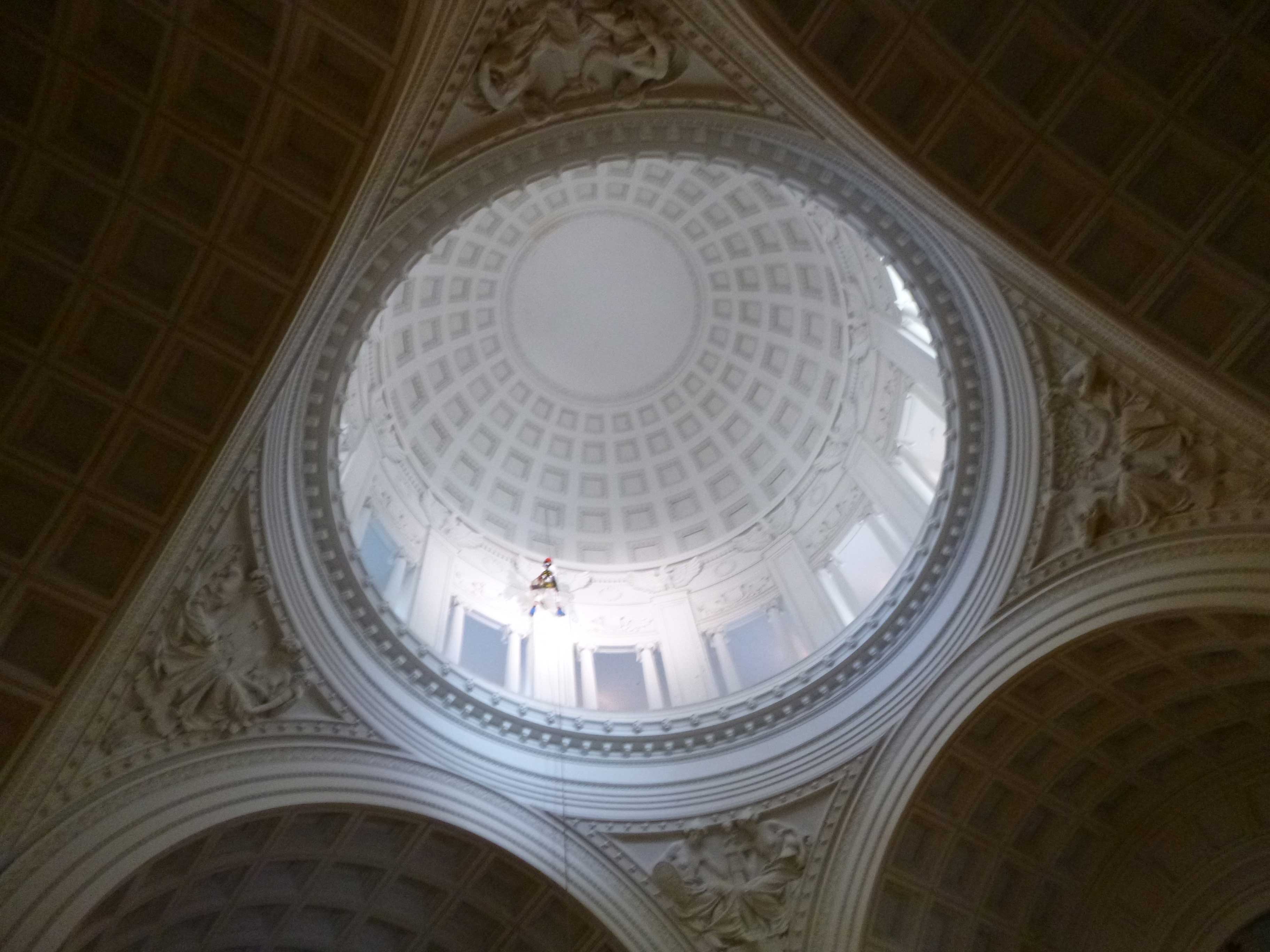

The General Grant National Memorial is a neo-classical structure of the Doric order based on the Mausoleum of Halicarnassus. On the exterior, the structure consists of a square base surmounted by a conical dome with a tall, colonnaded drum level, all faced with granite. The upper areas of the interior, including four barrel vaults facing the cardinal directions of the base of the monument, the pendentives where the square base transitions to the dome, the gallery at the drum level and the coffered ceiling at the interior dome, are faced with ornamental cast plaster.

Challenges

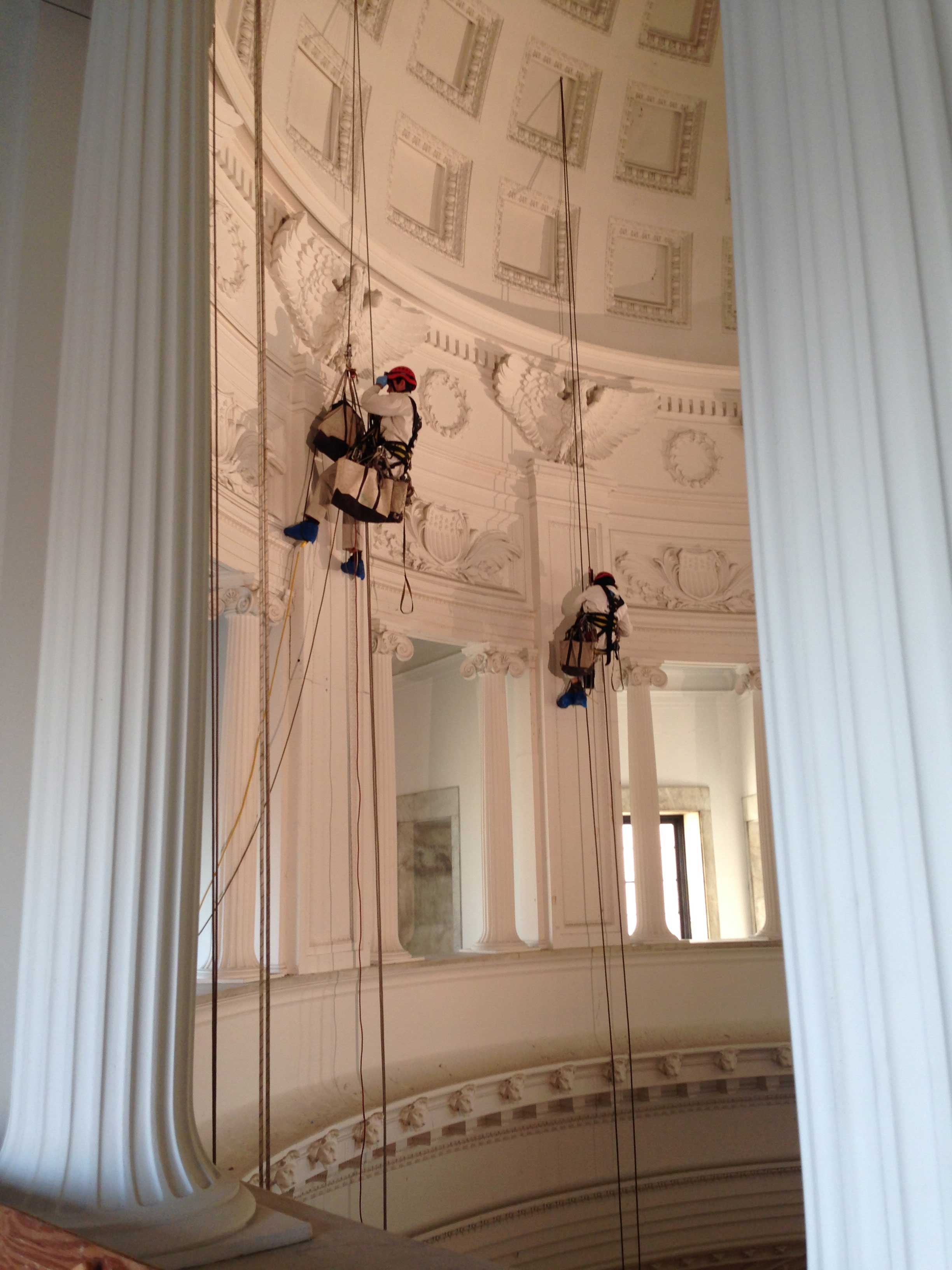

  • Layout rigging in attic above interior dome to position rope access drops directly in front of pilasters.
  • Better understand the construction of the plaster pilasters.
  • Identify factors contributing to the cracks and detachment observed in the plaster pilasters.

Solutions

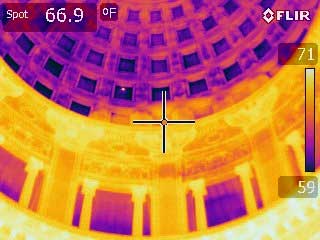

  • Used laser levels and infrared thermography to layout rigging holes in the attic.
  • Used a wall tie locator and fiber optic borescopes to locate subsurface ferrous elements and view and to document conditions behind the pre-cast plaster panels.

Building owner

National Park Service

In collaboration with

Bargmann Hendrie + Archetype
