Charleston, SC
The Ravenel Bridge is a cable-stayed bridge with a 1,546-foot long main span supported by 128 cables. Located over the Cooper River between Charleston and Mount Pleasant, South Carolina, it is the longest cable stayed bridge in North America. Since the bridge’s completion in 2005, its 575-foot tall diamond shaped towers have become a signature of South Carolina.
Project Scope

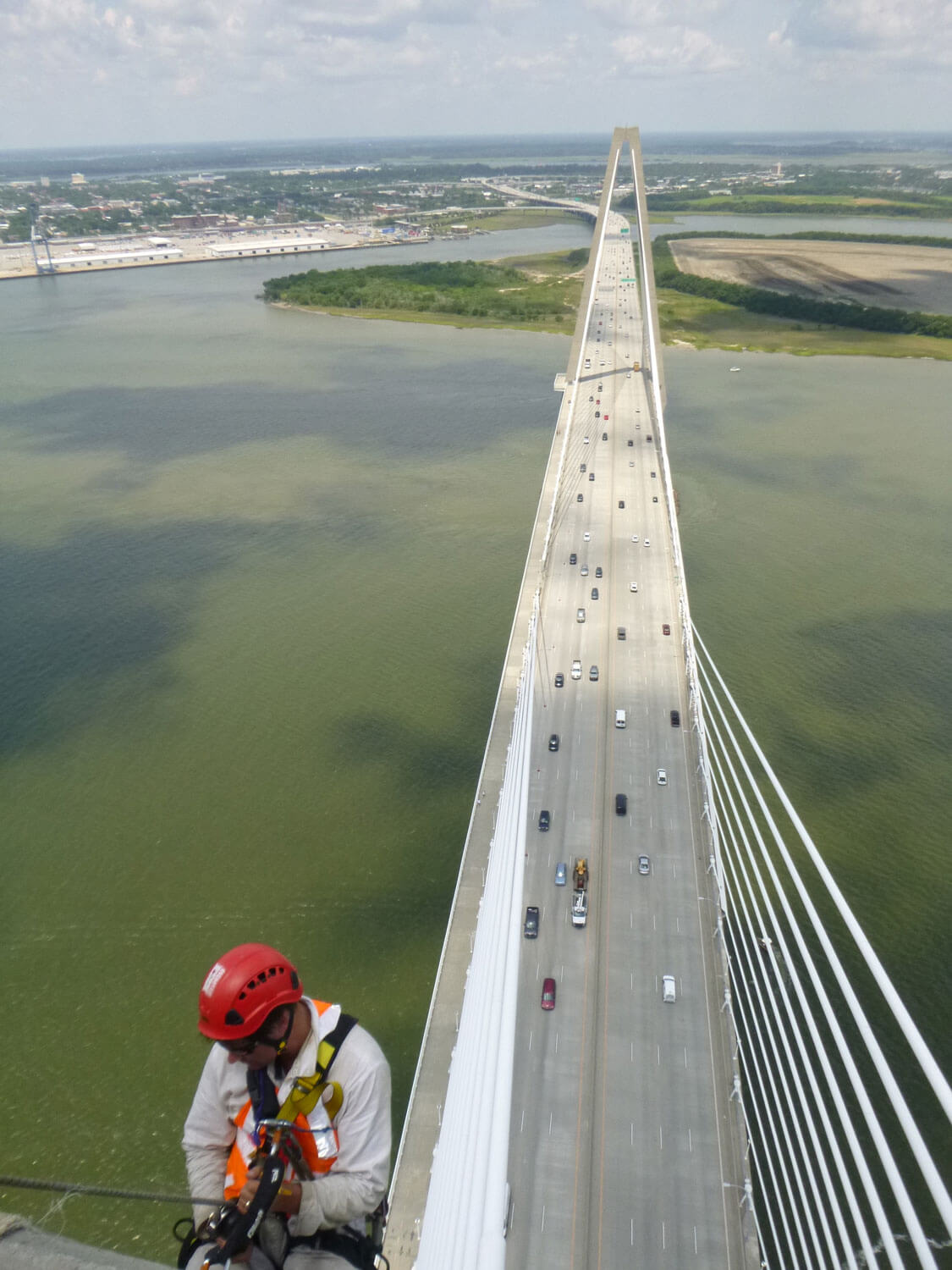

Vertical Access has performed several regularly-scheduled warranty inspections of the high-density polyethylene (HDPE) stay cable ducts and steel formwork tubes in the pylons of the Arthur Ravenel Jr. Bridge. Deliverables for each inspection include a letter of report, stay cable inspection forms, and photographs of survey conditions.
Solutions

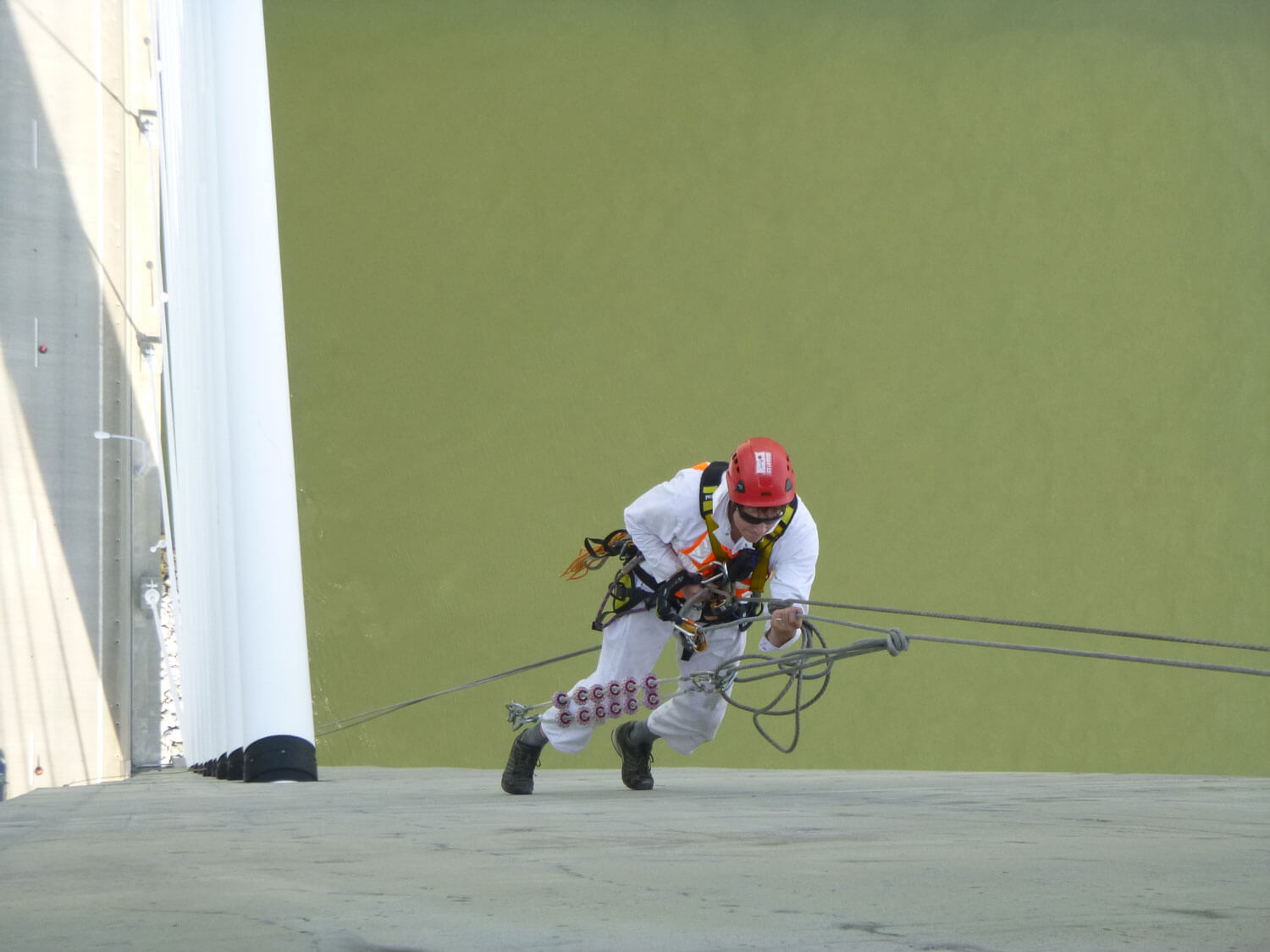

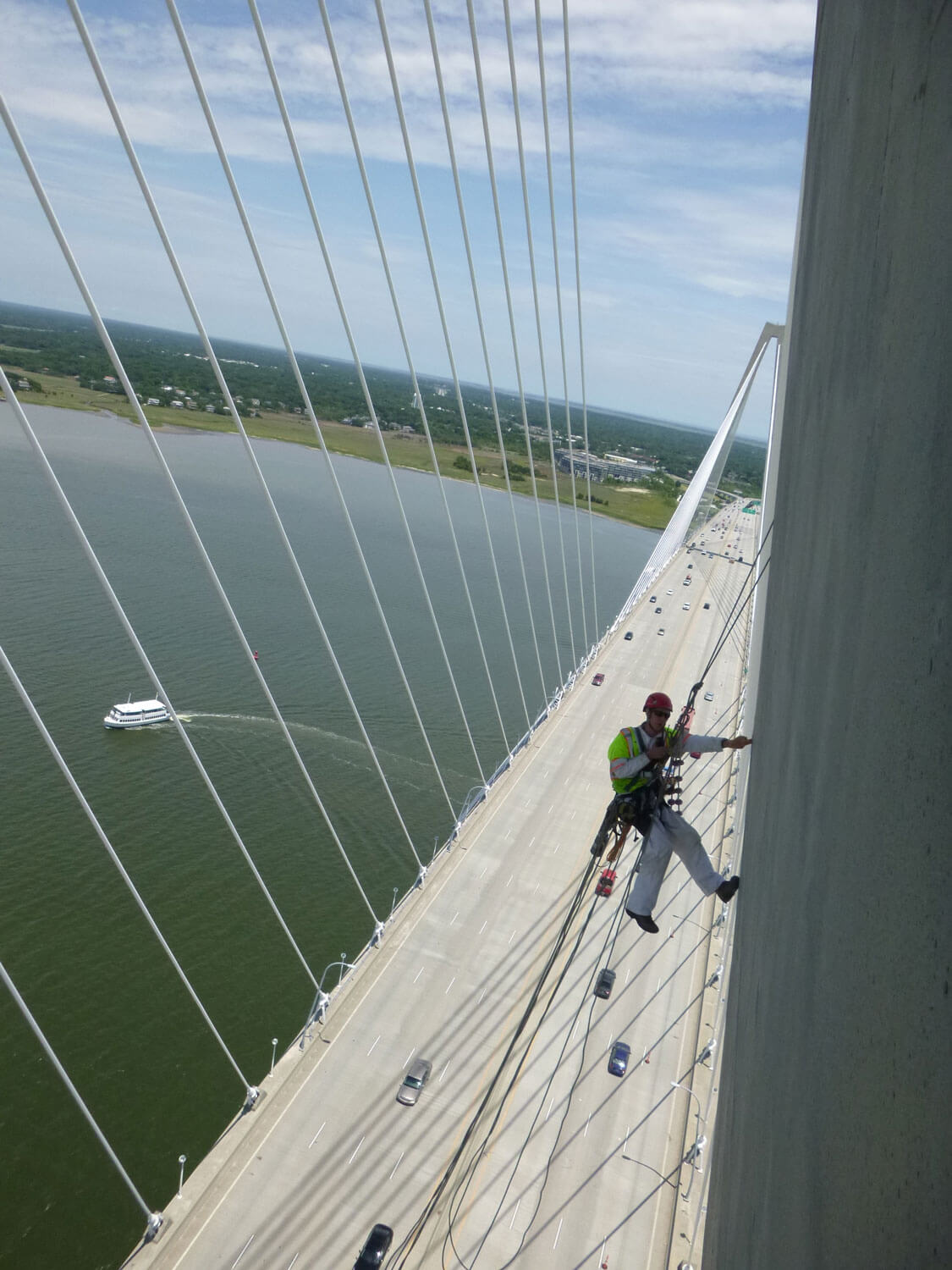

- Designed and fabricated a rolling anchor system to access the entire length of the stay cables, the longest of which are 850 feet long. The cable angles range from 15° to 65° from vertical.
Bridge owner
- South Carolina Department of Transportation
