USMA Thayer Hall

West Point, New York

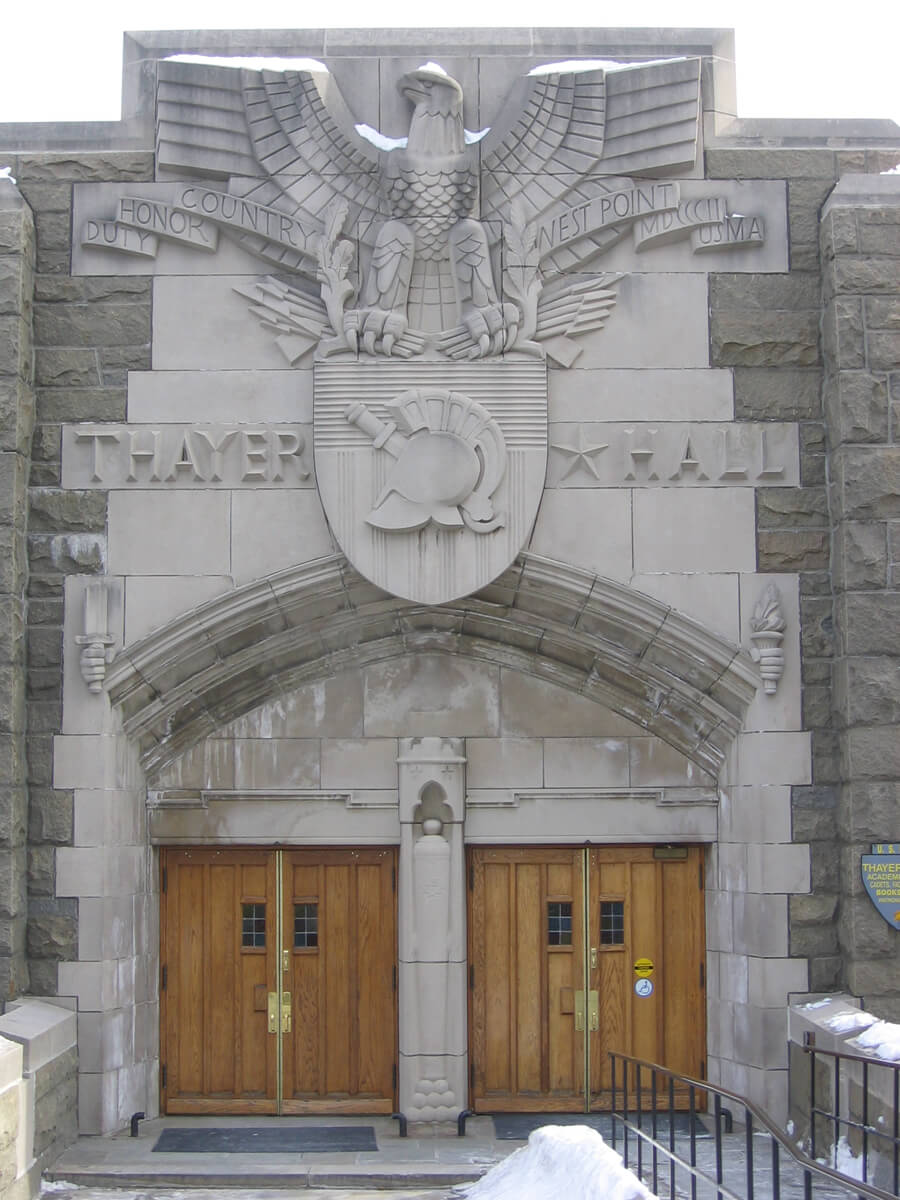

Thayer Hall at the United States Military Academy was originally designed and constructed as the Riding Hall, utilizing the vocabulary of the Gothic Revival style that was incorporated into other buildings at West Point during the same period. The structure originally contained one large free-span space in the main portion of the building, with horse stables and a hay loft located in an adjoining structure at the south end of the west elevation. Between 1955 and 1959, the Riding Hall was converted into an academic building and renamed Thayer Hall. Four floors were inserted into the interior of the structure and the space was divided into classrooms and offices. At that time a parking deck was constructed on top of a new roof structure and alterations were made to the west façade to accommodate the new use of the building. The exterior consists of gneiss masonry in random ashlar coursing, with limestone parapets, window and door surrounds and belt courses. Granite was used in some of the building alterations, especially at the bridges leading to the building on its west side.

Download Project Profile

Scope of work

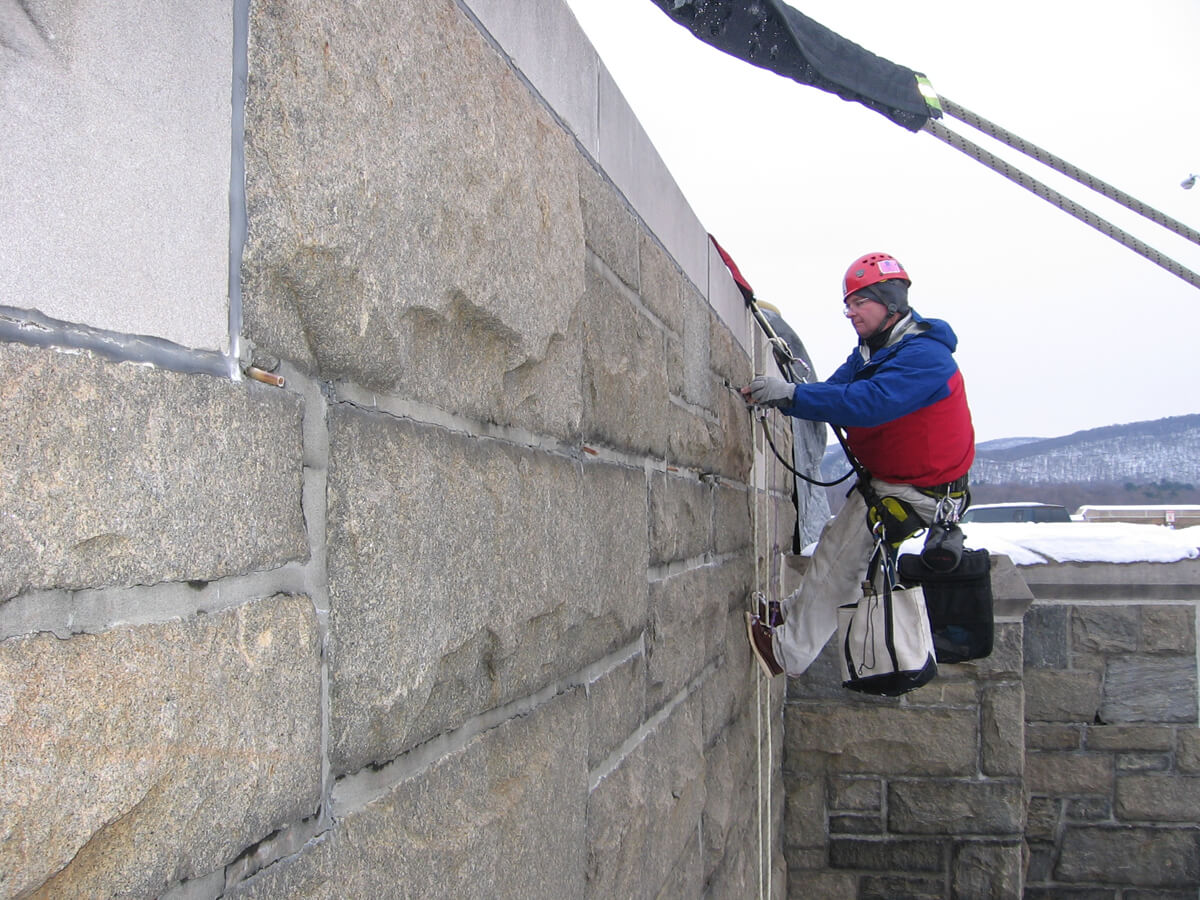

  • Surveyed existing condition of the exterior masonry at all areas of Thayer Hall including vehicle and pedestrian bridges on the west side of the building.
  • Performed investigation of setback roof drains and pipes using a fiber-optic diagnostic tool (the See Snake).

Original architect

  • Ralph Adams Cram of Cram, Goodhue & Ferguson Architects (completed 1911)

Building owner

  • United States Military Academy

In collaboration with
