Material: Stone
Condition: Crack System Joint
TPAS Code: CJ
Condition Type (AutoCAD Layer): Stone_Crack
Severity Units: Width in 1/16 inch increments
Ammount Units: Length in lineal feet
Description: A crack following the path of two or more connecting joints without any fractured masonry units.

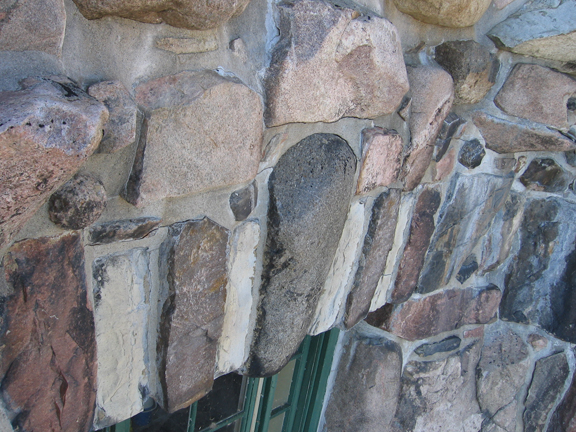

Image 1
Joint crack system in granite

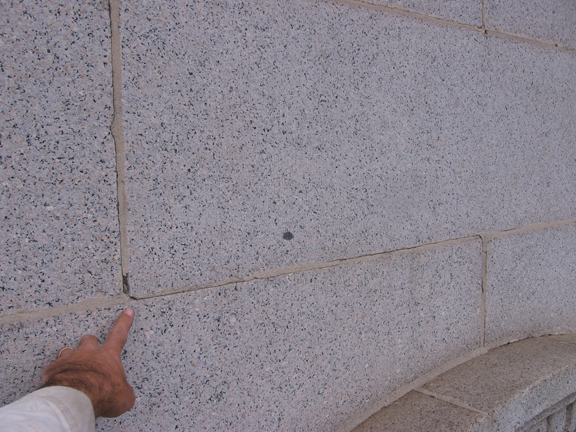

Image 3
Joint crack system in granite

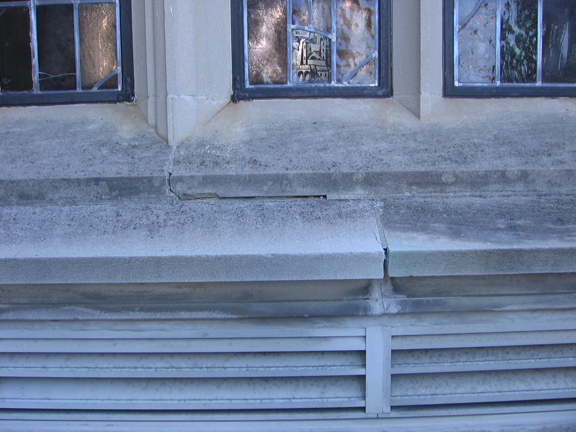

Image 2
Joint crack system in limestone

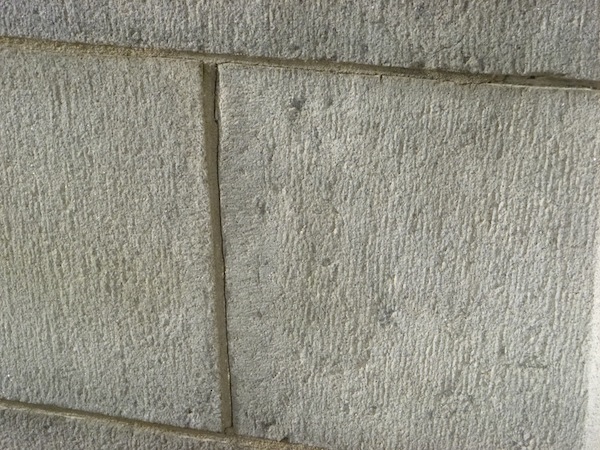

Image 4
Joint crack system in granite
