Material: Concrete
Condition: Spall Missing + Steel
TPAS Code: MS
Condition Type (AutoCAD Layer): Concrete_Spall
Severity Units: Not applicable
Ammount Units: Size in square inches
Description: The location of a spall that is no longer in situ at the time of the investigation and where there is steel evident, typically within the depression left by the missing spall.

Image 1

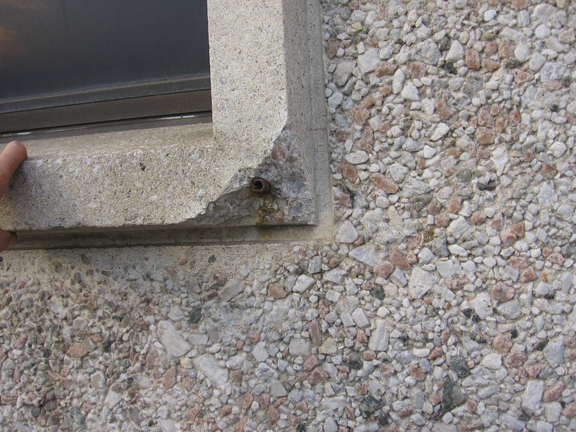

Missing spall in precast panel with exposed steel at drilled anchor
Image 3
Missing spall in precast panel exposing steel reinforcing mesh
Image 2

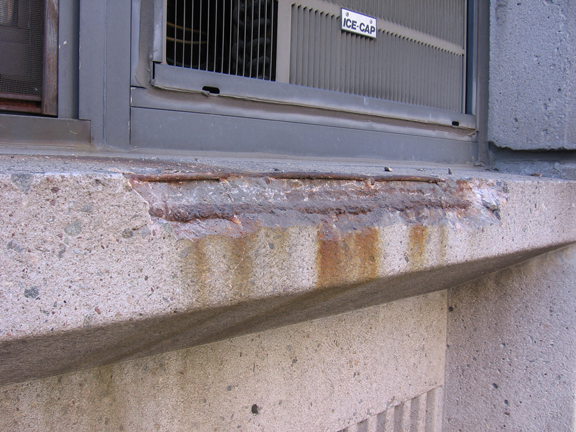

Missing spall in precast spandrel panel with exposed reinforcing steel
Image 4
Missing spalls exposing reinforcing steel in poured concrete
