Material: Sheet Metal
Condition: Damage Torn
TPAS Code: Trn
Condition Type (AutoCAD Layer): SheetMetal_Damage
Severity Units: Not applicable
Ammount Units: Length in feet
Description: Rip or tear in metal element.

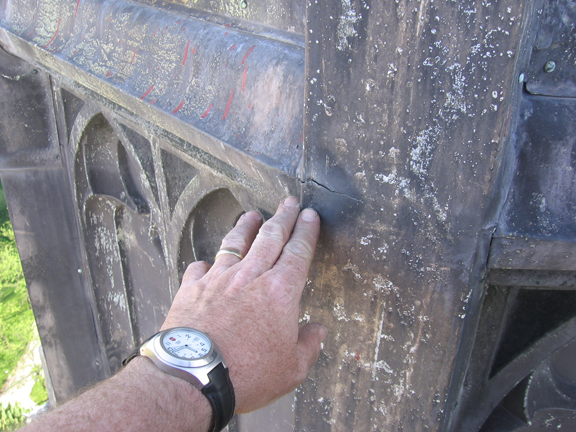

Image 1
Torn sheet metal

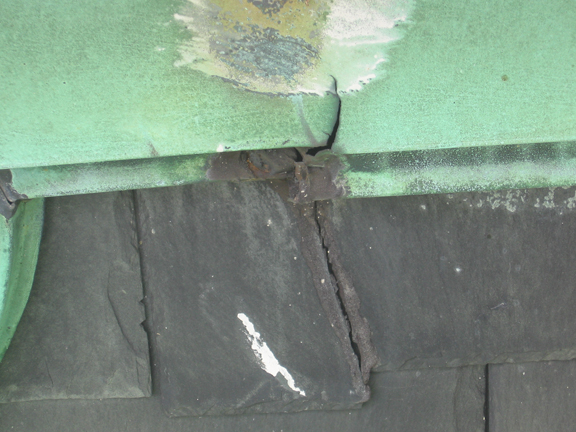

Image 3
Torn sheet metal

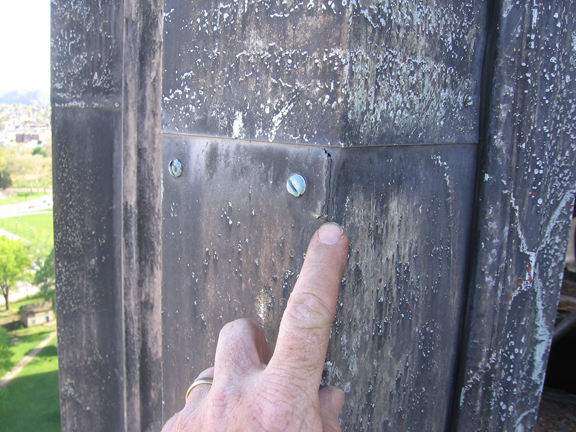

Image 2
Torn sheet metal

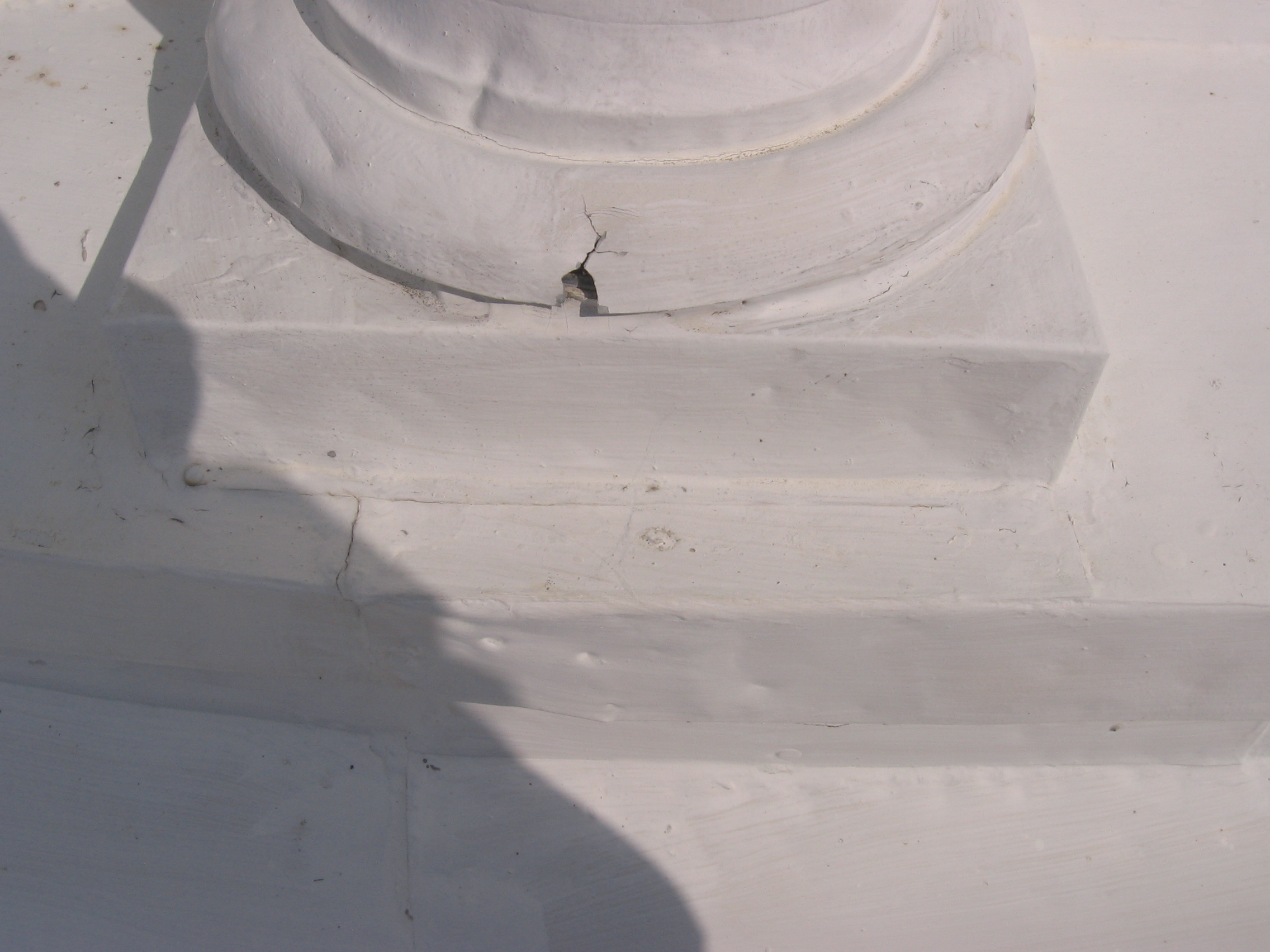

Image 4
Torn sheet metal
