Material: Stone
Condition: Crack System Unit and Joint
TPAS Code: CUJ
Condition Type (AutoCAD Layer): Stone_Crack
Severity Units: Width in 1/16 inch increments
Ammount Units: Length in lineal feet
Description: A crack following the path of two or more connecting joints and passing through one or more masonry units.

Image 1
Unit and Joint crack system in gneiss
Image 3
Unit and Joint crack system in limestone
Image 2

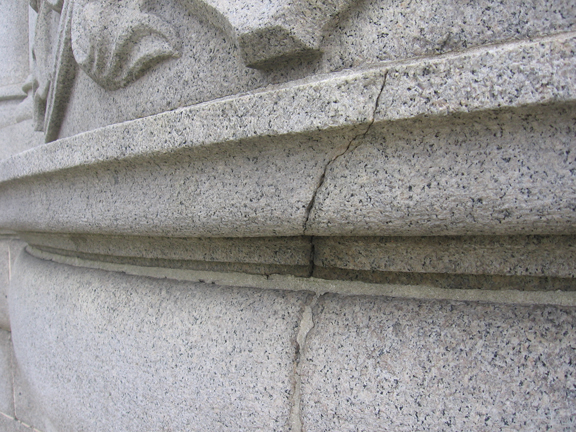

Unit and Joint crack system in granite
Image 4
Unit and joint crack system in granite
